45ZYN78 Rare Earth PMDC Motor
45MM OD rare earth PMDC motor, totally enclosed, used in occasions which require motors with low noise.
Product details
Description of The Product
45MM OD rare earth PMDC motor, totally enclosed, used in occasions which require motors with low noise.

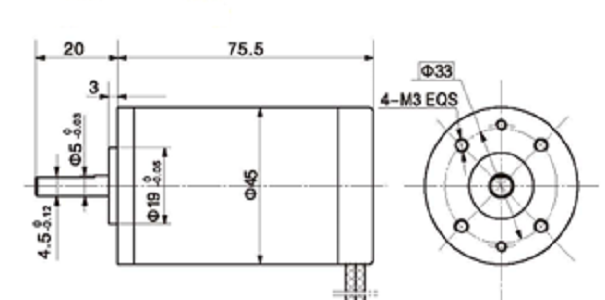

Dimensions
Motor Technical Data
TYPE | Rated voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Rated torque mN.m | Output Power W | Rated current A | Stall torque mN.m | Stall current A |
45ZYN78-2420 | 24 | 2000 | 0.25 | 1600 | 80 | 13 | 0.8 | 310 | 3.0 |
45ZYN78-2425 | 24 | 2500 | 0.30 | 2000 | 130 | 25 | 1.7 | 570 | 6.6 |
45ZYN78-2430 | 24 | 3000 | 0.30 | 2400 | 150 | 30 | 2.5 | 720 | 7.5 |
