90JW/83ZY125
Description of The Product
1、All equipped with ball bearings, left, right or hollow output shaft are available.
2、Customers can equip output shafts of different length, shape or directions within hollow shaft.

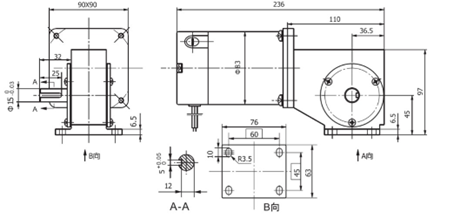

Dimensions
Remarks:Standard product is left output shaft, right output shaft is available upon request.
Motor Technical Data
Type | Rated voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Rated Torque mN.m | Output power W | Rated current A | Stall torque mN.m | Stall Current A |
83ZY125-2420 | 24 | 2000 | 0.8 | 1700 | 0.24 | 42 | 3.5 | 1.6 | 17 |
83ZY125-2430 | 24 | 3000 | 0.9 | 2500 | 0.30 | 77 | 4.6 | 1.8 | 20 |
Gear Motor Technical Data
83ZY125-2420 DC Motor
Reduction ratio | 50 | 40 | 32 | 25 | 16 | 12.5 |
Number of gear trains | 1 | 1 | 1 | 1 | 2 | 2 |
No-load speed r/min | 40 | 50 | 62 | 80 | 125 | 160 |
Rated speed r/min | 30 | 37 | 46 | 60 | 93 | 120 |
Rated torque N.m | 8.4 | 6.7 | 5.3 | 4.2 | 3.0 | 2.4 |
Max. permissible load in a short time N.m | 20 | 20 | 20 | 20 | 10 | 10 |
83ZY125-2430 DC Motor
Reduction ratio | 50 | 40 | 32 | 25 | 16 | 12.5 |
Number of gear trains | 1 | 1 | 1 | 1 | 2 | 2 |
No-load speed r/min | 60 | 75 | 93 | 120 | 187 | 240 |
Rated speed r/min | 46 | 57 | 71 | 92 | 143 | 184 |
Rated torque N.m | 10.5 | 8.4 | 6.7 | 5.2 | 3.8 | 3.0 |
Max. permissible load in a short time N.m | 20 | 20 | 20 | 20 | 10 | 10 |
